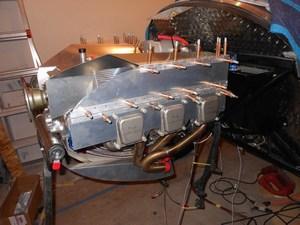

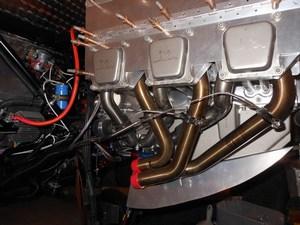

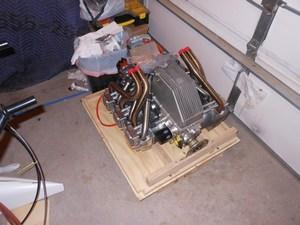

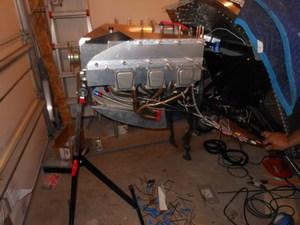

Jabiru 300 Engine Installation and Baffles

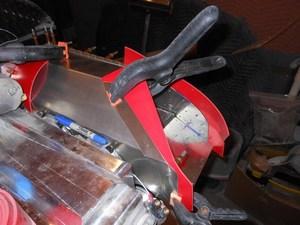

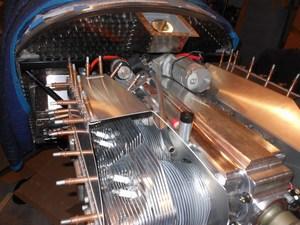

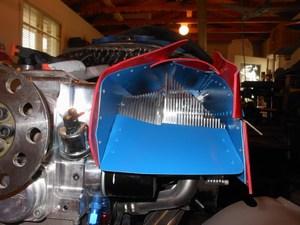

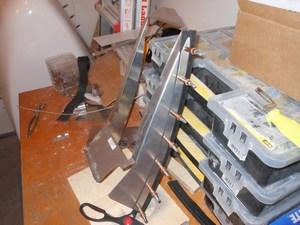

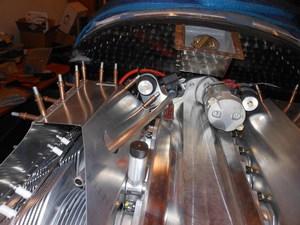

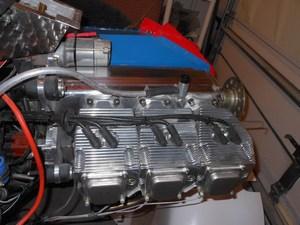

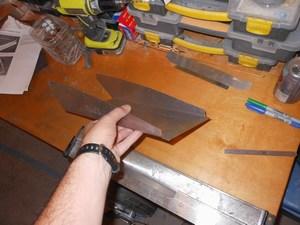

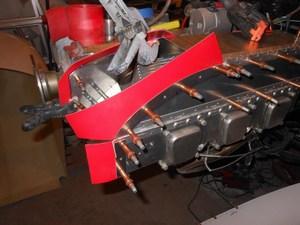

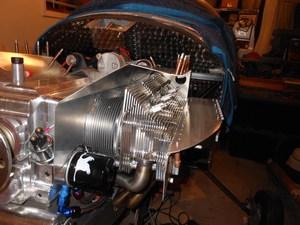

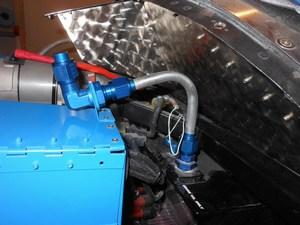

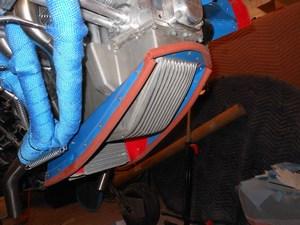

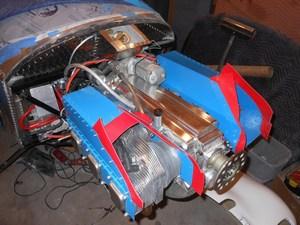

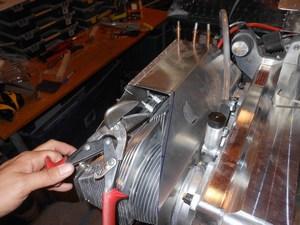

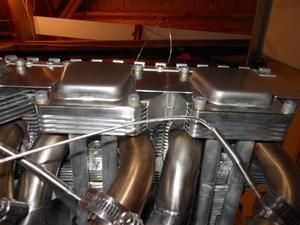

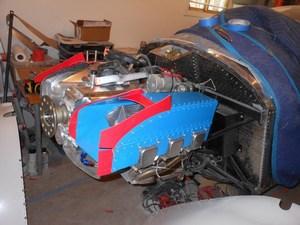

I made a few modifications to the Sonex baffles for easier maintenance. I split the bafels and re-attached the sections with hinges. Now getting to the spark plugs is quick and easy. I also installed a blast tube to cool the top mag unit.
